SKF NU213ECM/HC5C3 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NU213ECM/HC5C3 Transparent And Fair Price On Time Delivery

SKF NU213ECM/HC5C3 Bearing Description

We supply various of SKF NU213ECM/HC5C3 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NU213ECM/HC5C3 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NU213ECM/HC5C3 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NU213ECM/HC5C3 bearings inquire deeply into the running of the machine and friction phenomenon .SKF NU213ECM/HC5C3 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NU213ECM/HC5C3 bearings will be arranged timely for we have a large stock of SKF NU213ECM/HC5C3 bearings in HongKong.

SKF NU213ECM/HC5C3 Bearing Specification

Bearing number : NU213ECM/HC5C3

Size (mm) : 65x120x23

Brand : The brand you need

Bore Diameter (mm) : 65

Outer Diameter (mm) : 120

Width (mm) : 23

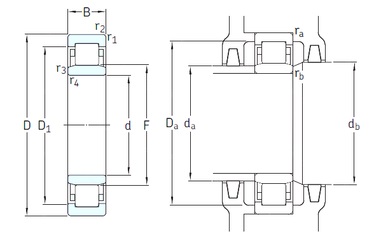

Bearing dimensions and specification in ALIER catalogue:

d – 65 mm

D – 120 mm

B – 23 mm

C – 23 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

r3 min. – 1,5 mm

r4 min. – 1,5 mm

D1 – 104 mm

F – 78,5 mm

da min. – 74 mm

da max – 76 mm

Da max. – 111 mm

db min – 81 mm

ra max. – 1,5 mm

rb max. – 1,5 mm

S – 1,4 mm

Weight – 0,83 Kg

Basic dynamic load rating (C) – 110 kN

Basic static load rating (C0) – 122 kN

Fatigue load limit (Pu) – 16

Reference speed – 5600 r/min

Limiting speed – 6700 r/min

Calculation factor (kr) – 0,15
