SKF NNU 4932 B/SPW33 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NNU 4932 B/SPW33 Transparent And Fair Price On Time Delivery

SKF NNU 4932 B/SPW33 Bearing Description

We supply various of SKF NNU 4932 B/SPW33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NNU 4932 B/SPW33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NNU 4932 B/SPW33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NNU 4932 B/SPW33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF NNU 4932 B/SPW33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NNU 4932 B/SPW33 bearings will be arranged timely for we have a large stock of SKF NNU 4932 B/SPW33 bearings in HongKong.

SKF NNU 4932 B/SPW33 Bearing Specification

Bearing number : NNU 4932 B/SPW33

Size (mm) : 160x220x60

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 220

Width (mm) : 60

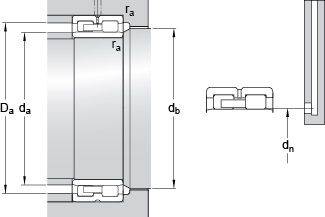

Bearing dimensions and specification in ALIER catalogue:

d – 160 mm

D – 220 mm

B – 60 mm

D₁ – 200.9 mm

F – 178.5 mm

b – 5.5 mm

K – 3 mm

r_1,2 – min. – 2 mm

r_1,2 – min. – 2 mm

s – 2 mm

d_a – min. – 170 mm

d_a – max. – 176 mm

d_b – min. – 182 mm

D_a – max. – 210 mm

r_a – max. – 2 mm

r_a – max. – 2 mm

d_n – 179.8 mm

Basic dynamic load rating – C – 330 kN

Basic static load rating – C₀ – 680 kN

Fatigue load limit – P_u – 72 kN

Limiting speed for grease lubrication – 3600 r/min

Limiting speed for oil lubrication – 4000 mm/min

G_ref – 63 cm

Mass bearing – 6.6 kg
