SKF NNCF 5040 CV Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NNCF 5040 CV Transparent And Fair Price On Time Delivery

SKF NNCF 5040 CV Bearing Description

We supply various of SKF NNCF 5040 CV bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NNCF 5040 CV bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NNCF 5040 CV bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NNCF 5040 CV bearings inquire deeply into the running of the machine and friction phenomenon .SKF NNCF 5040 CV bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NNCF 5040 CV bearings will be arranged timely for we have a large stock of SKF NNCF 5040 CV bearings in HongKong.

SKF NNCF 5040 CV Bearing Specification

Bearing number : NNCF 5040 CV

Size (mm) : 200x310x150

Brand : The brand you need

Bore Diameter (mm) : 200

Outer Diameter (mm) : 310

Width (mm) : 150

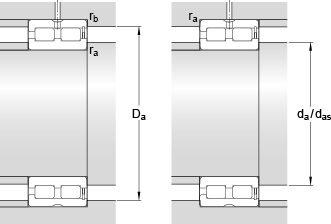

Bearing dimensions and specification in ALIER catalogue:

d – 200 mm

D – 310 mm

B – 150 mm

d₁ – – 237 mm

D₁ – – 274.5 mm

b₁ – 8 mm

K – 4 mm

s – 9 mm

r_1,2 – min. – 2.1 mm

r_3,4 – min. – 2.1 mm

d_a – min. – 212 mm

d_as – 224 mm

D_a – max. – 300 mm

r_a – max. – 2 mm

r_b – max. – 2 mm

Basic dynamic load rating – C – 1680 kN

Basic static load rating – C₀ – 3050 kN

Fatigue load limit – P_u – 320 kN

Reference speed – 950 r/min

Limiting speed – 1200 r/min

Calculation factor – k_r – 0.5

Mass bearing – 41 kg
