SKF NN 3036 K/SPW33 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NN 3036 K/SPW33 Transparent And Fair Price On Time Delivery

SKF NN 3036 K/SPW33 Bearing Description

We supply various of SKF NN 3036 K/SPW33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NN 3036 K/SPW33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NN 3036 K/SPW33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NN 3036 K/SPW33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF NN 3036 K/SPW33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NN 3036 K/SPW33 bearings will be arranged timely for we have a large stock of SKF NN 3036 K/SPW33 bearings in HongKong.

SKF NN 3036 K/SPW33 Bearing Specification

Bearing number : NN 3036 K/SPW33

Size (mm) : 180x280x74

Brand : The brand you need

Bore Diameter (mm) : 180

Outer Diameter (mm) : 280

Width (mm) : 74

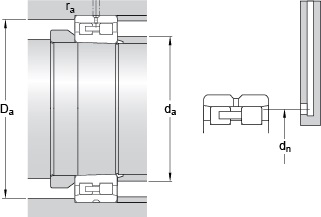

Bearing dimensions and specification in ALIER catalogue:

d – 180 mm

D – 280 mm

B – 74 mm

d₁ – 218.2 mm

E – 255 mm

b – 11.3 mm

K – 6 mm

r_1,2 – min. – 2.1 mm

r_3,4 – min. – 1.1 mm

s – 3 mm

d_a – min. – 191 mm

D_a – min. – 257 mm

D_a – max. – 269 mm

r_a – max. – 2 mm

d_n – 248.9 mm

Basic dynamic load rating – C – 561 kN

Basic static load rating – C₀ – 1000 kN

Fatigue load limit – P_u – 102 kN

Limiting speed for grease lubrication – 3000 r/min

Limiting speed for oil lubrication – 3400 mm/min

G_ref – 138 cm

Static radial stiffness (guideline value) – 3970 N/micron

Mass bearing – 16 kg
