SKF NJ 330 ECML Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NJ 330 ECML Transparent And Fair Price On Time Delivery

SKF NJ 330 ECML Bearing Description

We supply various of SKF NJ 330 ECML bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NJ 330 ECML bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NJ 330 ECML bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NJ 330 ECML bearings inquire deeply into the running of the machine and friction phenomenon .SKF NJ 330 ECML bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NJ 330 ECML bearings will be arranged timely for we have a large stock of SKF NJ 330 ECML bearings in HongKong.

SKF NJ 330 ECML Bearing Specification

Bearing number : NJ 330 ECML

Size (mm) : 150x320x65

Brand : The brand you need

Bore Diameter (mm) : 150

Outer Diameter (mm) : 320

Width (mm) : 65

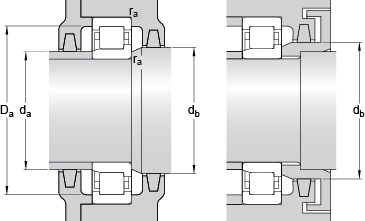

Bearing dimensions and specification in ALIER catalogue:

d – 150 mm

D – 320 mm

B – 65 mm

d₁ – – 209 mm

D₁ – – 269.8 mm

F – 193 mm

r_1,2 – min. – 4 mm

r_3,4 – min. – 4 mm

s – 4 mm

d_a – min. – 167 mm

d_a – max. – 188 mm

d_b – min. – 213 mm

D_a – max. – 302.2 mm

r_a – max. – 3 mm

Basic dynamic load rating – C – 900 kN

Basic static load rating – C₀ – 965 kN

Fatigue load limit – P_u – 100 kN

Reference speed – 2200 r/min

Limiting speed – 4000 r/min

Calculation factor – k_r – 0.23

Mass bearing – 26.58 kg
