SKF NJ 321 ECP Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NJ 321 ECP Transparent And Fair Price On Time Delivery

SKF NJ 321 ECP Bearing Description

We supply various of SKF NJ 321 ECP bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NJ 321 ECP bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NJ 321 ECP bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NJ 321 ECP bearings inquire deeply into the running of the machine and friction phenomenon .SKF NJ 321 ECP bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NJ 321 ECP bearings will be arranged timely for we have a large stock of SKF NJ 321 ECP bearings in HongKong.

SKF NJ 321 ECP Bearing Specification

Bearing number : NJ 321 ECP

Size (mm) : 105x225x49

Brand : The brand you need

Bore Diameter (mm) : 105

Outer Diameter (mm) : 225

Width (mm) : 49

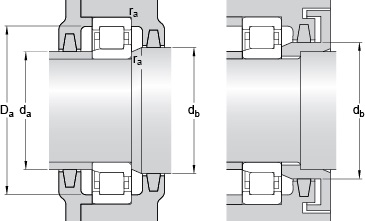

Bearing dimensions and specification in ALIER catalogue:

d – 105 mm

D – 225 mm

B – 49 mm

d₁ – – 145 mm

D₁ – – 189 mm

F – 133 mm

r_1,2 – min. – 3 mm

r_3,4 – min. – 3 mm

s – 3.4 mm

d_a – min. – 119 mm

d_a – max. – 129 mm

d_b – min. – 148 mm

D_a – max. – 209.4 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 500 kN

Basic static load rating – C₀ – 500 kN

Fatigue load limit – P_u – 57 kN

Reference speed – 3200 r/min

Limiting speed – 3800 r/min

Calculation factor – k_r – 0.15

Mass bearing – 9.074 kg
