SKF NJ 18/560 ECMA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NJ 18/560 ECMA Transparent And Fair Price On Time Delivery

SKF NJ 18/560 ECMA Bearing Description

We supply various of SKF NJ 18/560 ECMA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NJ 18/560 ECMA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NJ 18/560 ECMA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NJ 18/560 ECMA bearings inquire deeply into the running of the machine and friction phenomenon .SKF NJ 18/560 ECMA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NJ 18/560 ECMA bearings will be arranged timely for we have a large stock of SKF NJ 18/560 ECMA bearings in HongKong.

SKF NJ 18/560 ECMA Bearing Specification

Bearing number : NJ 18/560 ECMA

Size (mm) : 560x680x56

Brand : The brand you need

Bore Diameter (mm) : 560

Outer Diameter (mm) : 680

Width (mm) : 56

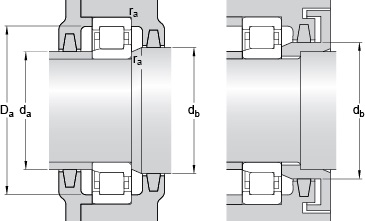

Bearing dimensions and specification in ALIER catalogue:

d – 560 mm

D – 680 mm

B – 56 mm

d₁ – – 601 mm

D₁ – – 639 mm

F – 591 mm

r_1,2 – min. – 3 mm

s – 6.8 mm

d_a – min. – 573 mm

d_a – max. – 584 mm

d_b – min. – 606 mm

D_a – max. – 667 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 809 kN

Basic static load rating – C₀ – 2040 kN

Fatigue load limit – P_u – 150 kN

Reference speed – 850 r/min

Limiting speed – 1100 r/min

Calculation factor – k_r – 0.05

Mass bearing – 45 kg
