SKF NJ 1044 ML Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NJ 1044 ML Transparent And Fair Price On Time Delivery

SKF NJ 1044 ML Bearing Description

We supply various of SKF NJ 1044 ML bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NJ 1044 ML bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NJ 1044 ML bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NJ 1044 ML bearings inquire deeply into the running of the machine and friction phenomenon .SKF NJ 1044 ML bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NJ 1044 ML bearings will be arranged timely for we have a large stock of SKF NJ 1044 ML bearings in HongKong.

SKF NJ 1044 ML Bearing Specification

Bearing number : NJ 1044 ML

Size (mm) : 220x340x56

Brand : The brand you need

Bore Diameter (mm) : 220

Outer Diameter (mm) : 340

Width (mm) : 56

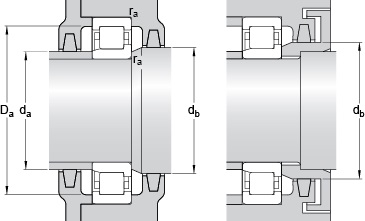

Bearing dimensions and specification in ALIER catalogue:

d – 220 mm

D – 340 mm

B – 56 mm

d₁ – – 262 mm

D₁ – – 296.2 mm

F – 250 mm

r_1,2 – min. – 3 mm

r_3,4 – min. – 3 mm

s – 7.5 mm

d_a – min. – 233 mm

d_a – max. – 246 mm

d_b – min. – 266 mm

D_a – max. – 328 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 495 kN

Basic static load rating – C₀ – 735 kN

Fatigue load limit – P_u – 73.5 kN

Reference speed – 2200 r/min

Limiting speed – 3200 r/min

Calculation factor – k_r – 0.15

Mass bearing – 18.496 kg

Tags :  ALIER , 220x340x56
