SKF NCF 2934 CV Bearing Description

We supply various of SKF NCF 2934 CV bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NCF 2934 CV bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NCF 2934 CV bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NCF 2934 CV bearings inquire deeply into the running of the machine and friction phenomenon .SKF NCF 2934 CV bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NCF 2934 CV bearings will be arranged timely for we have a large stock of SKF NCF 2934 CV bearings in HongKong.

SKF NCF 2934 CV Bearing Specification

Bearing number : NCF 2934 CV

Size (mm) : 170x230x36

Brand : The brand you need

Bore Diameter (mm) : 170

Outer Diameter (mm) : 230

Width (mm) : 36

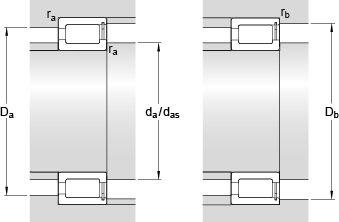

Bearing dimensions and specification in ALIER catalogue:

d – 170 mm

D – 230 mm

B – 36 mm

d₁ – – 191 mm

D₁ – – 211 mm

E – 218 mm

s – 2.5 mm

r_1,2 – min. – 2 mm

r_3,4 – min. – 1.1 mm

d_a – min. – 179 mm

d_as – 188 mm

D_a – max. – 221 mm

D_b – max. – 223 mm

r_a – max. – 2 mm

r_b – max. – 1 mm

Basic dynamic load rating – C – 314 kN

Basic static load rating – C₀ – 560 kN

Fatigue load limit – P_u – 60 kN

Reference speed – 1200 r/min

Limiting speed – 1500 r/min

Calculation factor – k_r – 0.2

Calculation factor – e – 0.3

Calculation factor – Y – 0.4

Mass bearing – 4.3 kg
