SKF NCF 29/670 V Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NCF 29/670 V Transparent And Fair Price On Time Delivery

SKF NCF 29/670 V Bearing Description

We supply various of SKF NCF 29/670 V bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NCF 29/670 V bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NCF 29/670 V bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NCF 29/670 V bearings inquire deeply into the running of the machine and friction phenomenon .SKF NCF 29/670 V bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NCF 29/670 V bearings will be arranged timely for we have a large stock of SKF NCF 29/670 V bearings in HongKong.

SKF NCF 29/670 V Bearing Specification

Bearing number : NCF 29/670 V

Size (mm) : 670x900x136

Brand : The brand you need

Bore Diameter (mm) : 670

Outer Diameter (mm) : 900

Width (mm) : 136

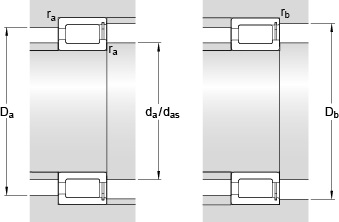

Bearing dimensions and specification in ALIER catalogue:

d – 670 mm

D – 900 mm

B – 136 mm

d₁ – – 748 mm

D₁ – – 827 mm

E – 846 mm

s – 10 mm

r_1,2 – min. – 6 mm

d_a – min. – 693 mm

d_as – 737 mm

D_a – max. – 877 mm

D_b – max. – 877 mm

r_a – max. – 5 mm

r_b – max. – 5 mm

Basic dynamic load rating – C – 3910 kN

Basic static load rating – C₀ – 9000 kN

Fatigue load limit – P_u – 630 kN

Reference speed – 260 r/min

Limiting speed – 320 r/min

Calculation factor – k_r – 0.2

Calculation factor – e – 0.3

Calculation factor – Y – 0.4

Mass bearing – 245 kg
