SKF NCF 2896 V Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NCF 2896 V Transparent And Fair Price On Time Delivery

SKF NCF 2896 V Bearing Description

We supply various of SKF NCF 2896 V bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NCF 2896 V bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NCF 2896 V bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NCF 2896 V bearings inquire deeply into the running of the machine and friction phenomenon .SKF NCF 2896 V bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NCF 2896 V bearings will be arranged timely for we have a large stock of SKF NCF 2896 V bearings in HongKong.

SKF NCF 2896 V Bearing Specification

Bearing number : NCF 2896 V

Size (mm) : 480x600x72

Brand : The brand you need

Bore Diameter (mm) : 480

Outer Diameter (mm) : 600

Width (mm) : 72

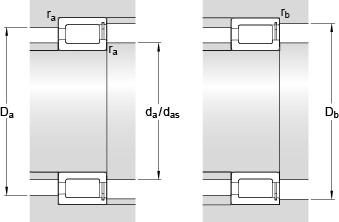

Bearing dimensions and specification in ALIER catalogue:

d – 480 mm

D – 600 mm

B – 72 mm

d₁ – – 520 mm

D₁ – – 562 mm

E – 573.5 mm

s – 5 mm

r_1,2 – min. – 3 mm

d_a – min. – 493 mm

d_as – 515 mm

D_a – max. – 587 mm

D_b – max. – 587 mm

r_a – max. – 2.5 mm

r_b – max. – 2.5 mm

Basic dynamic load rating – C – 1320 kN

Basic static load rating – C₀ – 3150 kN

Fatigue load limit – P_u – 265 kN

Reference speed – 400 r/min

Limiting speed – 500 r/min

Calculation factor – k_r –

Calculation factor – e – 0.3

Calculation factor – Y – 0.4

Mass bearing – 46 kg

Tags :  ALIER , 480x600x72
