SKF N 1024 KTN9/HC5SP Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment N 1024 KTN9/HC5SP Transparent And Fair Price On Time Delivery

SKF N 1024 KTN9/HC5SP Bearing Description

We supply various of SKF N 1024 KTN9/HC5SP bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF N 1024 KTN9/HC5SP bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF N 1024 KTN9/HC5SP bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF N 1024 KTN9/HC5SP bearings inquire deeply into the running of the machine and friction phenomenon .SKF N 1024 KTN9/HC5SP bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF N 1024 KTN9/HC5SP bearings will be arranged timely for we have a large stock of SKF N 1024 KTN9/HC5SP bearings in HongKong.

SKF N 1024 KTN9/HC5SP Bearing Specification

Bearing number : N 1024 KTN9/HC5SP

Size (mm) : 120x180x28

Brand : The brand you need

Bore Diameter (mm) : 120

Outer Diameter (mm) : 180

Width (mm) : 28

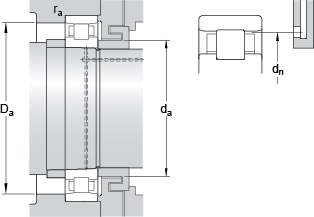

Bearing dimensions and specification in ALIER catalogue:

d – 120 mm

D – 180 mm

B – 28 mm

d₁ – 142.6 mm

E – 165 mm

r_1,2 – min. – 2 mm

r_3,4 – min. – 1.1 mm

s – 3 mm

d_a – min. – 129 mm

D_a – min. – 167 mm

D_a – max. – 171 mm

r_a – max. – 2 mm

d_n – 162.9 mm

Basic dynamic load rating – C – 134 kN

Basic static load rating – C₀ – 196 kN

Fatigue load limit – P_u – 22 kN

Limiting speed for grease lubrication – 6300 r/min

Limiting speed for oil lubrication – 7000 mm/min

G_ref – 22 cm

Static radial stiffness (guideline value) – 1730 N/micron

Mass bearing – 1.92 kg

Tags :  ALIER , 120x180x28
