SKF M349549/510/VE174 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment M349549/510/VE174 Transparent And Fair Price On Time Delivery

SKF M349549/510/VE174 Bearing Description

We supply various of SKF M349549/510/VE174 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF M349549/510/VE174 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF M349549/510/VE174 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF M349549/510/VE174 bearings inquire deeply into the running of the machine and friction phenomenon .SKF M349549/510/VE174 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF M349549/510/VE174 bearings will be arranged timely for we have a large stock of SKF M349549/510/VE174 bearings in HongKong.

SKF M349549/510/VE174 Bearing Specification

Bearing number : M349549/510/VE174

Size (mm) : 257.175×342.9×57.15

Brand : The brand you need

Bore Diameter (mm) : 257,175

Outer Diameter (mm) : 342,9

Width (mm) : 57,15

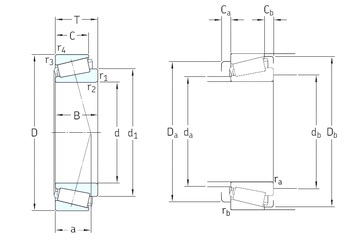

Bearing dimensions and specification in ALIER catalogue:

d – 257,175 mm

D – 342,9 mm

T – 57,15 mm

B – 57,15 mm

C – 44,5 mm

a – 60 mm

d1 – 44,4 mm

r1 min. – 6,4 mm

r2 min. – 6,4 mm

r3 min. – 3,3 mm

r4 min. – 3,3 mm

Ca min. – 9 mm

Cb min. – 12,5 mm

da max – 274 mm

Da min – 318 mm

Da max. – 328 mm

db min – 289 mm

Db min. – 331 mm

ra max. – 6 mm

rb max. – 3 mm

Weight – 14 Kg

Basic dynamic load rating (C) – 380 kN

Basic static load rating (C0) – 680 kN

Fatigue load limit (Pu) – 61

Reference speed – 1200 r/min

Limiting speed – 1800 r/min

Calculation factor (e) – 0,35

Calculation factor (Y) – 1,7

Calculation factor (Y0) – 0,9
