SKF M249747/710 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment M249747/710 Transparent And Fair Price On Time Delivery

SKF M249747/710 Bearing Description

We supply various of SKF M249747/710 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF M249747/710 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF M249747/710 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF M249747/710 bearings inquire deeply into the running of the machine and friction phenomenon .SKF M249747/710 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF M249747/710 bearings will be arranged timely for we have a large stock of SKF M249747/710 bearings in HongKong.

SKF M249747/710 Bearing Specification

Bearing number : M249747/710

Size (mm) : 257.175×358.775×71.438

Brand : The brand you need

Bore Diameter (mm) : 257,175

Outer Diameter (mm) : 358,775

Width (mm) : 71,438

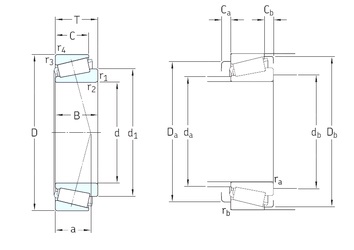

Bearing dimensions and specification in ALIER catalogue:

d – 257,175 mm

D – 358,775 mm

T – 71,438 mm

B – 76,2 mm

C – 53,975 mm

a – 64 mm

d1 – 303 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

r3 min. – 3,3 mm

r4 min. – 3,3 mm

Ca min. – 11 mm

Cb min. – 17 mm

da max – 276 mm

Da min – 326 mm

Da max. – 343 mm

db min – 269 mm

Db min. – 343 mm

ra max. – 1,5 mm

rb max. – 3 mm

Weight – 21,5 Kg

Basic dynamic load rating (C) – 842 kN

Basic static load rating (C0) – 1760 kN

Fatigue load limit (Pu) – 156

Reference speed – 1200 r/min

Limiting speed – 1700 r/min

Calculation factor (e) – 0,33

Calculation factor (Y) – 1,8

Calculation factor (Y0) – 1
