SKF M239448A/410 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment M239448A/410 Transparent And Fair Price On Time Delivery

SKF M239448A/410 Bearing Description

We supply various of SKF M239448A/410 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF M239448A/410 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF M239448A/410 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF M239448A/410 bearings inquire deeply into the running of the machine and friction phenomenon .SKF M239448A/410 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF M239448A/410 bearings will be arranged timely for we have a large stock of SKF M239448A/410 bearings in HongKong.

SKF M239448A/410 Bearing Specification

Bearing number : M239448A/410

Size (mm) : 191.237×279.4×52.388

Brand : The brand you need

Bore Diameter (mm) : 191,237

Outer Diameter (mm) : 279,4

Width (mm) : 52,388

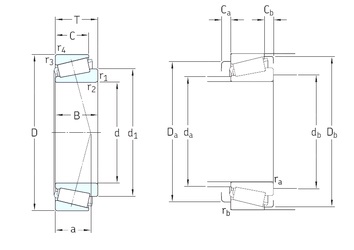

Bearing dimensions and specification in ALIER catalogue:

d – 191,237 mm

D – 279,4 mm

T – 52,388 mm

B – 58,81 mm

C – 41,33 mm

a – 49 mm

d1 – 232 mm

r1 min. – 3,3 mm

r2 min. – 3,3 mm

r3 min. – 3,3 mm

r4 min. – 3,3 mm

Ca min. – 9 mm

Cb min. – 11 mm

da max – 211 mm

Da min – 254 mm

Da max. – 265 mm

db min – 204 mm

Db min. – 266 mm

ra max. – 3,1 mm

rb max. – 3,1 mm

Weight – 9,2 Kg

Basic dynamic load rating (C) – 523 kN

Basic static load rating (C0) – 980 kN

Fatigue load limit (Pu) – 95

Reference speed – 1600 r/min

Limiting speed – 2200 r/min

Calculation factor (e) – 0,33

Calculation factor (Y) – 1,8

Calculation factor (Y0) – 1
