SKF LM772748/710/HA1 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment LM772748/710/HA1 Transparent And Fair Price On Time Delivery

SKF LM772748/710/HA1 Bearing Description

We supply various of SKF LM772748/710/HA1 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF LM772748/710/HA1 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF LM772748/710/HA1 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF LM772748/710/HA1 bearings inquire deeply into the running of the machine and friction phenomenon .SKF LM772748/710/HA1 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF LM772748/710/HA1 bearings will be arranged timely for we have a large stock of SKF LM772748/710/HA1 bearings in HongKong.

SKF LM772748/710/HA1 Bearing Specification

Bearing number : LM772748/710/HA1

Size (mm) : 488.95×634.873×84.138

Brand : The brand you need

Bore Diameter (mm) : 488,95

Outer Diameter (mm) : 634,873

Width (mm) : 84,138

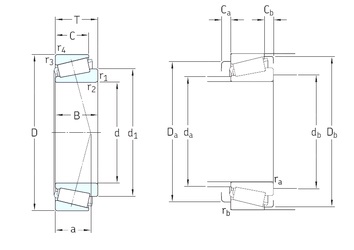

Bearing dimensions and specification in ALIER catalogue:

d – 488,95 mm

D – 634,873 mm

T – 84,138 mm

B – 84,138 mm

C – 61,912 mm

a – 124 mm

d1 – 560 mm

r1 min. – 6,4 mm

r2 min. – 6,4 mm

r3 min. – 3,3 mm

r4 min. – 3,3 mm

Ca min. – 13 mm

Cb min. – 22 mm

da max – 519 mm

Da min – 584 mm

Da max. – 618 mm

db min – 520 mm

Db min. – 613 mm

ra max. – 6 mm

rb max. – 3,1 mm

Weight – 63,5 Kg

Basic dynamic load rating (C) – 1450 kN

Basic static load rating (C0) – 3650 kN

Fatigue load limit (Pu) – 265

Reference speed – 600 r/min

Limiting speed – 850 r/min

Calculation factor (e) – 0,48

Calculation factor (Y) – 1,25

Calculation factor (Y0) – 0,7
