SKF KR 19 PPSKA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment KR 19 PPSKA Transparent And Fair Price On Time Delivery

SKF KR 19 PPSKA Bearing Description

We supply various of SKF KR 19 PPSKA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF KR 19 PPSKA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF KR 19 PPSKA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF KR 19 PPSKA bearings inquire deeply into the running of the machine and friction phenomenon .SKF KR 19 PPSKA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF KR 19 PPSKA bearings will be arranged timely for we have a large stock of SKF KR 19 PPSKA bearings in HongKong.

SKF KR 19 PPSKA Bearing Specification

Bearing number : KR 19 PPSKA

Size (mm) : 8x19x32

Brand : The brand you need

Bore Diameter (mm) : 8

Outer Diameter (mm) : 19

Width (mm) : 32

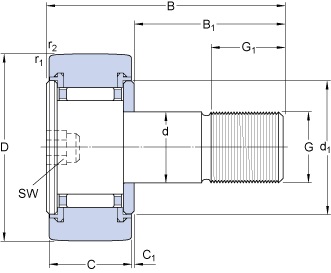

Bearing dimensions and specification in ALIER catalogue:

D – 19 mm

d – 8 mm

B – 32 mm

C – 11 mm

B₁ – 20 mm

C₁ – 0.6 mm

d₁ – 15 mm

G – M 8

G₁ – 10 mm

SW – 4 mm

r_1,2 – min. – 0.15 mm

Basic dynamic load rating – C – 3.5 kN

Basic static load rating – C₀ – 3.8 kN

Fatigue load limit – P_u – 0.415 kN

Maximum dynamic radial loads – F_r – 3.8 kN

Maximum static radial loads – F_0r – 5.5 kN

Limiting speed – 5600 r/min

Mass support roller – 0.029 kg

Recommended tighthening torque – 8 N??m

Hexagonal nut – M 8×1.25

Tags :  ALIER , 8x19x32
