SKF GEP560FS Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment GEP560FS Transparent And Fair Price On Time Delivery

SKF GEP560FS Bearing Description

We supply various of SKF GEP560FS bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF GEP560FS bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF GEP560FS bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF GEP560FS bearings inquire deeply into the running of the machine and friction phenomenon .SKF GEP560FS bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF GEP560FS bearings will be arranged timely for we have a large stock of SKF GEP560FS bearings in HongKong.

SKF GEP560FS Bearing Specification

Bearing number : GEP560FS

Size (mm) : 560x800x400

Brand : The brand you need

Bore Diameter (mm) : 560

Outer Diameter (mm) : 800

Width (mm) : 400

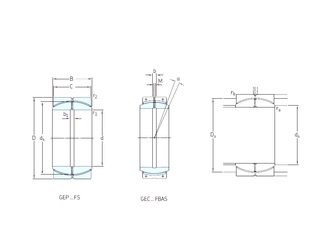

Bearing dimensions and specification in ALIER catalogue:

d – 560 mm

D – 800 mm

B – 400 mm

C – 380 mm

b – 27 mm

b1 – 27 mm

dk – 723 mm

r1 min. – 2 mm

r2 min. – 5 mm

M – 10 mm

da min. – 585 mm

da max – 602 mm

Da min – 673 mm

Da max. – 758 mm

ra max. – 2 mm

rb max. – 5 mm

Angle – 2 °

Weight – 730 Kg

Basic dynamic load rating (C) – 19600 kN

Basic static load rating (C0) – 29000 kN
