SKF GEP440FS Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment GEP440FS Transparent And Fair Price On Time Delivery

SKF GEP440FS Bearing Description

We supply various of SKF GEP440FS bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF GEP440FS bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF GEP440FS bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF GEP440FS bearings inquire deeply into the running of the machine and friction phenomenon .SKF GEP440FS bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF GEP440FS bearings will be arranged timely for we have a large stock of SKF GEP440FS bearings in HongKong.

SKF GEP440FS Bearing Specification

Bearing number : GEP440FS

Size (mm) : 440x630x315

Brand : The brand you need

Bore Diameter (mm) : 440

Outer Diameter (mm) : 630

Width (mm) : 315

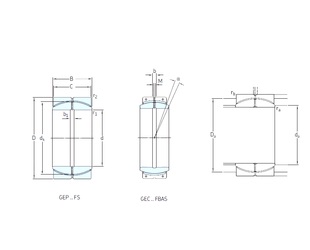

Bearing dimensions and specification in ALIER catalogue:

d – 440 mm

D – 630 mm

B – 315 mm

C – 300 mm

b – 27 mm

b1 – 27 mm

dk – 574 mm

r1 min. – 1,5 mm

r2 min. – 4 mm

M – 10 mm

da min. – 460 mm

da max – 479 mm

Da min – 534 mm

Da max. – 596 mm

ra max. – 1,5 mm

rb max. – 4 mm

Angle – 2 °

Weight – 360 Kg

Basic dynamic load rating (C) – 12200 kN

Basic static load rating (C0) – 18600 kN

Tags :  ALIER , 440x630x315
