SKF GEP400FS Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment GEP400FS Transparent And Fair Price On Time Delivery

SKF GEP400FS Bearing Description

We supply various of SKF GEP400FS bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF GEP400FS bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF GEP400FS bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF GEP400FS bearings inquire deeply into the running of the machine and friction phenomenon .SKF GEP400FS bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF GEP400FS bearings will be arranged timely for we have a large stock of SKF GEP400FS bearings in HongKong.

SKF GEP400FS Bearing Specification

Bearing number : GEP400FS

Size (mm) : 400x580x280

Brand : The brand you need

Bore Diameter (mm) : 400

Outer Diameter (mm) : 580

Width (mm) : 280

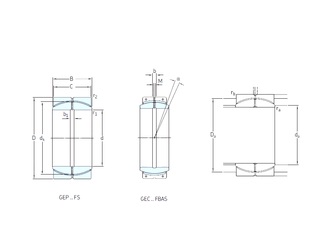

Bearing dimensions and specification in ALIER catalogue:

d – 400 mm

D – 580 mm

B – 280 mm

C – 265 mm

b – 21 mm

b1 – 21 mm

dk – 514 mm

r1 min. – 1,5 mm

r2 min. – 4 mm

M – 8 mm

da min. – 418 mm

da max – 431 mm

Da min – 478 mm

Da max. – 549 mm

ra max. – 1,5 mm

rb max. – 4 mm

Angle – 2 °

Weight – 275 Kg

Basic dynamic load rating (C) – 9650 kN

Basic static load rating (C0) – 14600 kN

Tags :  ALIER , 400x580x280
