SKF GEP280FS Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment GEP280FS Transparent And Fair Price On Time Delivery

SKF GEP280FS Bearing Description

We supply various of SKF GEP280FS bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF GEP280FS bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF GEP280FS bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF GEP280FS bearings inquire deeply into the running of the machine and friction phenomenon .SKF GEP280FS bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF GEP280FS bearings will be arranged timely for we have a large stock of SKF GEP280FS bearings in HongKong.

SKF GEP280FS Bearing Specification

Bearing number : GEP280FS

Size (mm) : 280x400x200

Brand : The brand you need

Bore Diameter (mm) : 280

Outer Diameter (mm) : 400

Width (mm) : 200

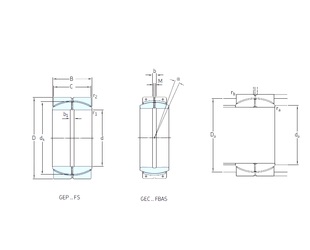

Bearing dimensions and specification in ALIER catalogue:

d – 280 mm

D – 400 mm

B – 200 mm

C – 190 mm

b – 15,5 mm

b1 – 15,5 mm

dk – 370 mm

r1 min. – 1,1 mm

r2 min. – 1,1 mm

M – 7 mm

da min. – 294 mm

da max – 311 mm

Da min – 345 mm

Da max. – 381 mm

ra max. – 1 mm

rb max. – 1 mm

Angle – 2 °

Weight – 89,5 Kg

Basic dynamic load rating (C) – 5000 kN

Basic static load rating (C0) – 7500 kN
