SKF GEG160ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment GEG160ES Transparent And Fair Price On Time Delivery

SKF GEG160ES Bearing Description

We supply various of SKF GEG160ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF GEG160ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF GEG160ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF GEG160ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF GEG160ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF GEG160ES bearings will be arranged timely for we have a large stock of SKF GEG160ES bearings in HongKong.

SKF GEG160ES Bearing Specification

Bearing number : GEG160ES

Size (mm) : 160x230x160

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 230

Width (mm) : 160

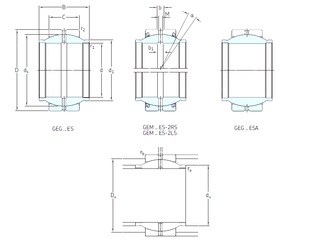

Bearing dimensions and specification in ALIER catalogue:

d – 160 mm

D – 230 mm

B – 160 mm

C – 80 mm

b – 13,5 mm

b1 – 13,5 mm

d1 – 177 mm

dk – 200 mm

r1 min. – 1 mm

r2 min. – 1 mm

M – 6 mm

da min. – 172 mm

da max – 177 mm

Da min – 190 mm

Da max. – 222 mm

ra max. – 1 mm

rb max. – 1 mm

Angle – 4 °

Weight – 16,5 Kg

Basic dynamic load rating (C) – 1370 kN

Basic static load rating (C0) – 6800 kN
