SKF GEG125ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment GEG125ES Transparent And Fair Price On Time Delivery

SKF GEG125ES Bearing Description

We supply various of SKF GEG125ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF GEG125ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF GEG125ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF GEG125ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF GEG125ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF GEG125ES bearings will be arranged timely for we have a large stock of SKF GEG125ES bearings in HongKong.

SKF GEG125ES Bearing Specification

Bearing number : GEG125ES

Size (mm) : 125x180x125

Brand : The brand you need

Bore Diameter (mm) : 125

Outer Diameter (mm) : 180

Width (mm) : 125

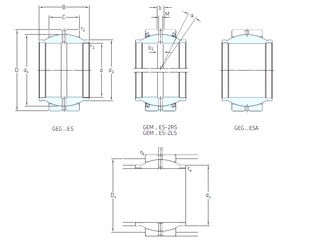

Bearing dimensions and specification in ALIER catalogue:

d – 125 mm

D – 180 mm

B – 125 mm

C – 70 mm

b – 13,5 mm

b1 – 13,5 mm

d1 – 138 mm

dk – 160 mm

r1 min. – 1 mm

r2 min. – 1 mm

M – 6 mm

da min. – 136,5 mm

da max – 138 mm

Da min – 152 mm

Da max. – 172 mm

ra max. – 1 mm

rb max. – 1 mm

Angle – 4 °

Weight – 8,5 Kg

Basic dynamic load rating (C) – 950 kN

Basic static load rating (C0) – 4750 kN
