SKF FYWR 30 YTHR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYWR 30 YTHR Transparent And Fair Price On Time Delivery

SKF FYWR 30 YTHR Bearing Description

We supply various of SKF FYWR 30 YTHR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYWR 30 YTHR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYWR 30 YTHR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYWR 30 YTHR bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYWR 30 YTHR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYWR 30 YTHR bearings will be arranged timely for we have a large stock of SKF FYWR 30 YTHR bearings in HongKong.

SKF FYWR 30 YTHR Bearing Specification

Bearing number : FYWR 30 YTHR

Size (mm) : 30×34.1×13.5

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 34,1

Width (mm) : 13,5

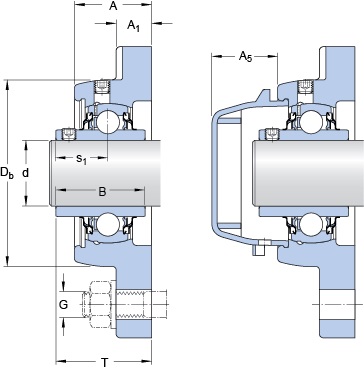

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

A – 34.1 mm

A₁ – 13.5 mm

A₅ – 29.3 mm

B – 38.1 mm

D_b1 – 74.1 mm

D_b2 – 78.4 mm

J – 82.6 mm

L – 108 mm

H – 12.7 mm

s₁ – 22.2 mm

T – 42 mm

R_G – 1/4-28 UNF

R₁ – 22.7 mm

Basic dynamic load rating – C – 16.3 kN

Basic static load rating – C₀ – 11.2 kN

Fatigue load limit – P_u – 0.475 kN

Limiting speed – 3800 r/min

Mass bearing unit – 1.35 kg

Thread – G₂ – M6x0.75

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m

Tags :  ALIER , 30×34.1×13.5
