SKF FYWK 25 YTA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYWK 25 YTA Transparent And Fair Price On Time Delivery

SKF FYWK 25 YTA Bearing Description

We supply various of SKF FYWK 25 YTA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYWK 25 YTA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYWK 25 YTA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYWK 25 YTA bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYWK 25 YTA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYWK 25 YTA bearings will be arranged timely for we have a large stock of SKF FYWK 25 YTA bearings in HongKong.

SKF FYWK 25 YTA Bearing Specification

Bearing number : FYWK 25 YTA

Size (mm) : 25x31x15

Brand : The brand you need

Bore Diameter (mm) : 25

Outer Diameter (mm) : 31

Width (mm) : 15

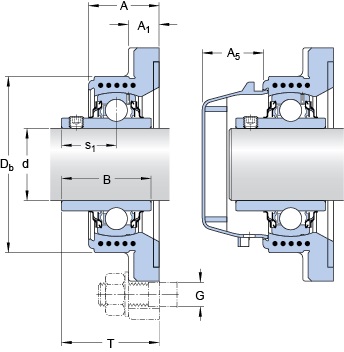

Bearing dimensions and specification in ALIER catalogue:

d – 25 mm

A – 31 mm

A₁ – 15 mm

A₅ – 25.5 mm

B – 34.1 mm

D_b – 65 mm

J – 70 mm

L – 95 mm

H – 12.3 mm

s₁ – 19.8 mm

T – 38.8 mm

Basic dynamic load rating – C – 14 kN

Basic static load rating – C₀ – 7.8 kN

Fatigue load limit – P_u – 0.335 kN

Limiting speed – 4300 r/min

Mass bearing unit – 0.37 kg

Thread – G₂ – M6x0.75

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m
