SKF FYTWR 25 YTHR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYTWR 25 YTHR Transparent And Fair Price On Time Delivery

SKF FYTWR 25 YTHR Bearing Description

We supply various of SKF FYTWR 25 YTHR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYTWR 25 YTHR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYTWR 25 YTHR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYTWR 25 YTHR bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYTWR 25 YTHR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYTWR 25 YTHR bearings will be arranged timely for we have a large stock of SKF FYTWR 25 YTHR bearings in HongKong.

SKF FYTWR 25 YTHR Bearing Specification

Bearing number : FYTWR 25 YTHR

Size (mm) : 25×29.4×13.5

Brand : The brand you need

Bore Diameter (mm) : 25

Outer Diameter (mm) : 29,4

Width (mm) : 13,5

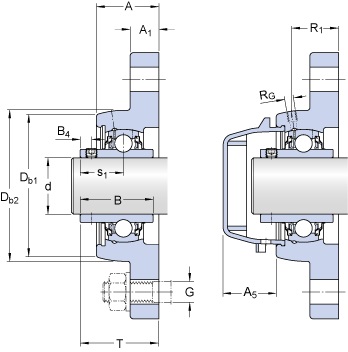

Bearing dimensions and specification in ALIER catalogue:

d – 25 mm

A – 29.4 mm

A₁ – 13.5 mm

A₅ – 24.9 mm

B – 34.1 mm

B₄ – 5 mm

D_b1 – 65.1 mm

D_b2 – 69.9 mm

J – 98.8 mm

H – 123.8 mm

L – 69.9 mm

H – 12.7 mm

s₁ – 19.8 mm

T – 36.5 mm

R_G – 1/4-28 UNF

R₁ – 18.2 mm

R_α – 45 °

Basic dynamic load rating – C – 11.9 kN

Basic static load rating – C₀ – 7.8 kN

Fatigue load limit – P_u – 0.335 kN

Limiting speed – 4300 r/min

Mass bearing unit – 0.71 kg

Thread – G₂ – M6x0.75

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m

Tags :  ALIER , 25×29.4×13.5
