SKF FYTWR 1.1/4 YTHR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYTWR 1.1/4 YTHR Transparent And Fair Price On Time Delivery

SKF FYTWR 1.1/4 YTHR Bearing Description

We supply various of SKF FYTWR 1.1/4 YTHR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYTWR 1.1/4 YTHR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYTWR 1.1/4 YTHR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYTWR 1.1/4 YTHR bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYTWR 1.1/4 YTHR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYTWR 1.1/4 YTHR bearings will be arranged timely for we have a large stock of SKF FYTWR 1.1/4 YTHR bearings in HongKong.

SKF FYTWR 1.1/4 YTHR Bearing Specification

Bearing number : FYTWR 1.1/4 YTHR

Size (mm) : 31.75×35.7×14.3

Brand : The brand you need

Bore Diameter (mm) : 31,75

Outer Diameter (mm) : 35,7

Width (mm) : 14,3

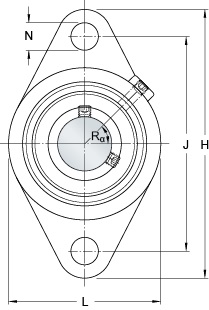

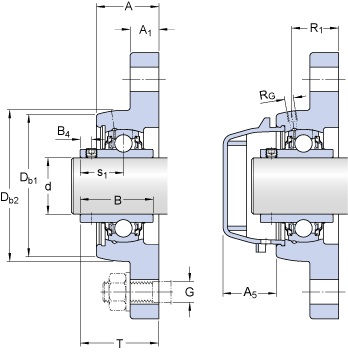

Bearing dimensions and specification in ALIER catalogue:

d – 31.75 mm

A – 35.7 mm

A₁ – 14.3 mm

A₅ – 30.5 mm

B – 42.9 mm

B₄ – 6 mm

D_b1 – 87 mm

D_b2 – 92.1 mm

J – 130.2 mm

H – 155.6 mm

L – 92.1 mm

H – 14.3 mm

s₁ – 25.4 mm

T – 46 mm

R_G – 1/4-28 UNF

R₁ – 24 mm

R_α – 45 °

Basic dynamic load rating – C – 21.6 kN

Basic static load rating – C₀ – 15.3 kN

Fatigue load limit – P_u – 0.655 kN

Limiting speed – 3200 r/min

Mass bearing unit – 1.4 kg

Thread – G₂ – 5/16-24 UNF

Hexagonal key size for grub screw – H – 3.969 mm

Recommended tightening torque for grub screw – 6.5 N??m
