SKF FYTBK 20 FE Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYTBK 20 FE Transparent And Fair Price On Time Delivery

SKF FYTBK 20 FE Bearing Description

We supply various of SKF FYTBK 20 FE bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYTBK 20 FE bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYTBK 20 FE bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYTBK 20 FE bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYTBK 20 FE bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYTBK 20 FE bearings will be arranged timely for we have a large stock of SKF FYTBK 20 FE bearings in HongKong.

SKF FYTBK 20 FE Bearing Specification

Bearing number : FYTBK 20 FE

Size (mm) : 20×29.5×15

Brand : The brand you need

Bore Diameter (mm) : 20

Outer Diameter (mm) : 29,5

Width (mm) : 15

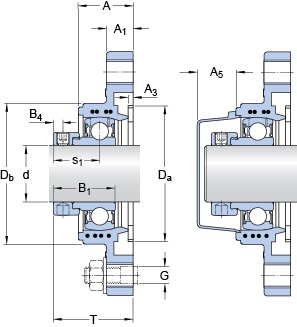

Bearing dimensions and specification in ALIER catalogue:

d – 20 mm

A – 29.5 mm

A₁ – 15 mm

A₃ – H14 – 3.2 mm

A₅ – 18.5 mm

B₁ – 31 mm

B₄ – 4.75 mm

D_a – H11 – 50.8 mm

D_b – 59 mm

J – 90 mm

H – 112 mm

L – 60.5 mm

H – 12.3 mm

s₁ – 23.9 mm

T – 42.9 mm

Basic dynamic load rating – C – 12.7 kN

Basic static load rating – C₀ – 6.6 kN

Fatigue load limit – P_u – 0.28 kN

Limiting speed – 8500 r/min

Mass bearing unit – 0.24 kg

Thread – G₂ – M6x0.75

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m
