SKF FYTB 1.1/2 TDW Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYTB 1.1/2 TDW Transparent And Fair Price On Time Delivery

SKF FYTB 1.1/2 TDW Bearing Description

We supply various of SKF FYTB 1.1/2 TDW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYTB 1.1/2 TDW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYTB 1.1/2 TDW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYTB 1.1/2 TDW bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYTB 1.1/2 TDW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYTB 1.1/2 TDW bearings will be arranged timely for we have a large stock of SKF FYTB 1.1/2 TDW bearings in HongKong.

SKF FYTB 1.1/2 TDW Bearing Specification

Bearing number : FYTB 1.1/2 TDW

Size (mm) : 38.1×38.5×14

Brand : The brand you need

Bore Diameter (mm) : 38,1

Outer Diameter (mm) : 38,5

Width (mm) : 14

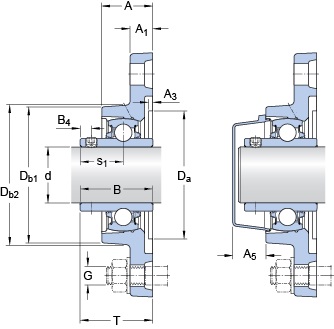

Bearing dimensions and specification in ALIER catalogue:

d – 38.1 mm

A – 38.5 mm

A₁ – 14 mm

A₃ – H14 – 3.2 mm

A₅ – 23.5 mm

B – 49.2 mm

B₄ – 8 mm

D_a – H11 – 88.9 mm

D_b1 – 98 mm

D_b2 – 102 mm

J – 143.5 mm

H – 171.5 mm

L – 102 mm

H – 14 mm

s₁ – 30.2 mm

T – 54.2 mm

J₆ – 115.5 mm

J₇ – 16 mm

N₄ – 2 mm

R_G – 1/4-28 UNF

R₁ – 24.5 mm

R_α – 45 °

Basic dynamic load rating – C – 30.7 kN

Basic static load rating – C₀ – 19 kN

Fatigue load limit – P_u – 0.8 kN

Limiting speed – 950 r/min

Mass bearing unit – 1.6 kg

Thread – G₂ – 1/4-28 UNF

Hexagonal key size for grub screw – H – 3.175 mm

Recommended tightening torque for grub screw – 4 N??m

Tags :  ALIER , 38.1×38.5×14
