SKF FYTB 1.1/2 LDW Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYTB 1.1/2 LDW Transparent And Fair Price On Time Delivery

SKF FYTB 1.1/2 LDW Bearing Description

We supply various of SKF FYTB 1.1/2 LDW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYTB 1.1/2 LDW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYTB 1.1/2 LDW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYTB 1.1/2 LDW bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYTB 1.1/2 LDW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYTB 1.1/2 LDW bearings will be arranged timely for we have a large stock of SKF FYTB 1.1/2 LDW bearings in HongKong.

SKF FYTB 1.1/2 LDW Bearing Specification

Bearing number : FYTB 1.1/2 LDW

Size (mm) : 38.1x62x38.5

Brand : The brand you need

Bore Diameter (mm) : 38,1

Outer Diameter (mm) : 62

Width (mm) : 38,5

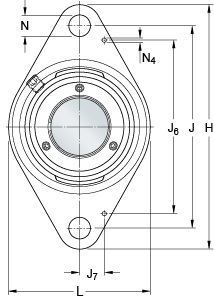

Bearing dimensions and specification in ALIER catalogue:

d – 38.1 mm

d₂ – 62 mm

A – 38.5 mm

A₁ – 14 mm

A₃ – H14 – 3.2 mm

A₅ – 23.5 mm

B₁ – 42.9 mm

D_a – H11 – 88.9 mm

D_b1 – 98 mm

D_b2 – 102 mm

J – 143.5 mm

H – 171.5 mm

L – 102 mm

H – 14 mm

s₁ – 25.9 mm

T – 49.9 mm

J₆ – 115.5 mm

J₇ – 16 mm

N₄ – 2 mm

R_G – 1/4-28 UNF

R₁ – 24.5 mm

R_α – 45 °

Basic dynamic load rating – C – 30.7 kN

Basic static load rating – C₀ – 19 kN

Fatigue load limit – P_u – 0.8 kN

Limiting speed – 950 r/min

Mass bearing unit – 1.55 kg

Thread – G₂ – M6

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 7.4 N??m
