SKF FYNT 40 F Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYNT 40 F Transparent And Fair Price On Time Delivery

SKF FYNT 40 F Bearing Description

We supply various of SKF FYNT 40 F bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYNT 40 F bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYNT 40 F bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYNT 40 F bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYNT 40 F bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYNT 40 F bearings will be arranged timely for we have a large stock of SKF FYNT 40 F bearings in HongKong.

SKF FYNT 40 F Bearing Specification

Bearing number : FYNT 40 F

Size (mm) : 40x66x12

Brand : The brand you need

Bore Diameter (mm) : 40

Outer Diameter (mm) : 66

Width (mm) : 12

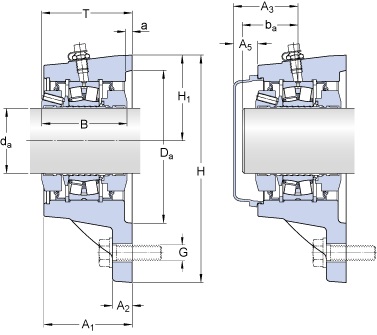

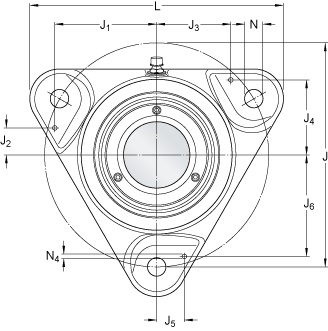

Bearing dimensions and specification in ALIER catalogue:

d_a – 40 mm

A₁ – 66 mm

A₂ – 12 mm

T – max. – 72.5 mm

B – 65 mm

H – 160 mm

H₁ – 60 mm

J – 160 mm

L – 179 mm

D_a – 100 mm

H – 14 mm

a – 4 mm

J₁ – 71 mm

J₂ – 20 mm

J₃ – 53 mm

J₄ – 43 mm

J₅ – 18 mm

J₆ – 72 mm

N₄ – max. – 6 mm

A₃ – 51 mm

A₅ – 23.5 mm

b_a – min. – 34 mm

b_a – max. – 43 mm

Basic dynamic load rating – C – 96.5 kN

Basic static load rating – C₀ – 90 kN

Fatigue load limit – P_u – 9.8 kN

Limiting speed – 3800 r/min

Calculation factor – e – 0.28

Calculation factor – Y₁ – 2.4

Calculation factor – Y₂ – 3.6

Diameter – d_m – 60 mm

Basic Designation bearing – 22208 E

P_a – 15 kN

P₁ – 90 kN

P₂ – 60 kN

P₃ – 100 kN

Mass bearing unit – 3.6 kg

Diameter – G – 12 mm
