SKF FYK 30 WD Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment FYK 30 WD Transparent And Fair Price On Time Delivery

SKF FYK 30 WD Bearing Description

We supply various of SKF FYK 30 WD bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FYK 30 WD bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FYK 30 WD bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FYK 30 WD bearings inquire deeply into the running of the machine and friction phenomenon .SKF FYK 30 WD bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FYK 30 WD bearings will be arranged timely for we have a large stock of SKF FYK 30 WD bearings in HongKong.

SKF FYK 30 WD Bearing Specification

Bearing number : FYK 30 WD

Size (mm) : 30x33x15.3

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 33

Width (mm) : 15,3

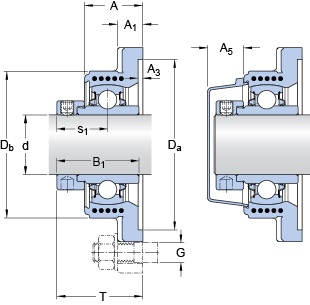

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

A – 33 mm

A₁ – 15.3 mm

A₃ – H14 – 3.2 mm

A₅ – 20 mm

B₁ – 48.4 mm

D_a – H11 – 93.7 mm

D_b – 78 mm

J – 82.5 mm

L – 108 mm

H – 12.3 mm

s₁ – 30.1 mm

T – 50.1 mm

Basic dynamic load rating – C – 19.5 kN

Basic static load rating – C₀ – 11.2 kN

Fatigue load limit – P_u – 0.475 kN

Limiting speed – 1200 r/min

Mass bearing unit – 0.56 kg

Thread – G₂ – M8x1

Hexagonal key size for grub screw – H – 4 mm

Recommended tightening torque for grub screw – 6.5 N??m

Tags :  ALIER , 30x33x15.3
