SKF FY 1. WDW Bearing Description

We supply various of SKF FY 1. WDW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF FY 1. WDW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF FY 1. WDW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF FY 1. WDW bearings inquire deeply into the running of the machine and friction phenomenon .SKF FY 1. WDW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF FY 1. WDW bearings will be arranged timely for we have a large stock of SKF FY 1. WDW bearings in HongKong.

SKF FY 1. WDW Bearing Specification

Bearing number : FY 1. WDW

Size (mm) : 25.4x30x12

Brand : The brand you need

Bore Diameter (mm) : 25,4

Outer Diameter (mm) : 30

Width (mm) : 12

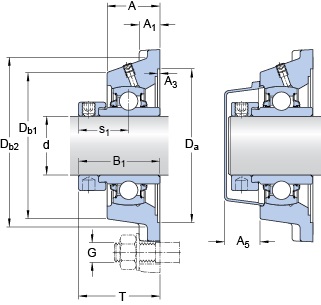

Bearing dimensions and specification in ALIER catalogue:

d – 25.4 mm

A – 30 mm

A₁ – 12 mm

A₃ – H14 – 3.2 mm

A₅ – 18 mm

B₁ – 44.4 mm

D_a – H11 – 74.6 mm

D_b1 – 65 mm

D_b2 – 71 mm

J – 70 mm

L – 95 mm

H – 11.5 mm

s₁ – 26.9 mm

T – 45.9 mm

J₆ – 83 mm

J₇ – 19 mm

N₄ – 4 mm

R_G – 1/4-28 UNF

R₁ – 21 mm

Basic dynamic load rating – C – 14 kN

Basic static load rating – C₀ – 7.8 kN

Fatigue load limit – P_u – 0.335 kN

Limiting speed – 1500 r/min

Mass bearing unit – 0.75 kg

Thread – G₂ – 1/4-28 UNF

Hexagonal key size for grub screw – H – 3.175 mm

Recommended tightening torque for grub screw – 4 N??m
