SKF EE843220/290 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment EE843220/290 Transparent And Fair Price On Time Delivery

SKF EE843220/290 Bearing Description

We supply various of SKF EE843220/290 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF EE843220/290 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF EE843220/290 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF EE843220/290 bearings inquire deeply into the running of the machine and friction phenomenon .SKF EE843220/290 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF EE843220/290 bearings will be arranged timely for we have a large stock of SKF EE843220/290 bearings in HongKong.

SKF EE843220/290 Bearing Specification

Bearing number : EE843220/290

Size (mm) : 558.8×736.6×88.108

Brand : The brand you need

Bore Diameter (mm) : 558,8

Outer Diameter (mm) : 736,6

Width (mm) : 88,108

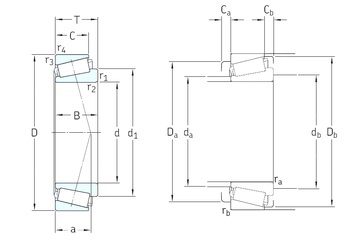

Bearing dimensions and specification in ALIER catalogue:

d – 558,8 mm

D – 736,6 mm

T – 88,108 mm

B – 88,108 mm

C – 63,5 mm

a – 111 mm

d1 – 637 mm

r1 min. – 6,4 mm

r2 min. – 6,4 mm

r3 min. – 6,4 mm

r4 min. – 6,4 mm

Ca min. – 13 mm

Cb min. – 24,5 mm

da max – 600 mm

Da min – 689 mm

Da max. – 704 mm

db min – 590 mm

Db min. – 707 mm

ra max. – 6 mm

rb max. – 6 mm

Weight – 92,5 Kg

Basic dynamic load rating (C) – 1830 kN

Basic static load rating (C0) – 4150 kN

Fatigue load limit (Pu) – 305

Reference speed – 500 r/min

Limiting speed – 750 r/min

Calculation factor (e) – 0,35

Calculation factor (Y) – 1,7

Calculation factor (Y0) – 0,9

Tags :  ALIER , 558.8×736.6×88.108
