SKF C4028K30V Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C4028K30V Transparent And Fair Price On Time Delivery

SKF C4028K30V Bearing Description

We supply various of SKF C4028K30V bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C4028K30V bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C4028K30V bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C4028K30V bearings inquire deeply into the running of the machine and friction phenomenon .SKF C4028K30V bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C4028K30V bearings will be arranged timely for we have a large stock of SKF C4028K30V bearings in HongKong.

SKF C4028K30V Bearing Specification

Bearing number : C4028K30V

Size (mm) : 140x210x69

Brand : The brand you need

Bore Diameter (mm) : 140

Outer Diameter (mm) : 210

Width (mm) : 69

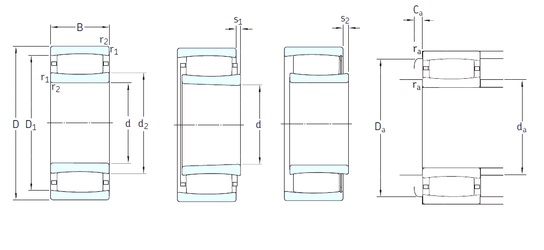

Bearing dimensions and specification in ALIER catalogue:

d – 140 mm

D – 210 mm

B – 69 mm

C – 69 mm

d2 – 161 mm

r1 min. – 2 mm

r2 min. – 2 mm

D1 – 193 mm

da min. – 150 mm

da max – 177 mm

Da max. – 200 mm

ra max. – 2 mm

Calculation factor (k2) – 0,097

S1 – 11,4 mm

S2 – 5,9 mm

Weight – 8,6 Kg

Basic dynamic load rating (C) – 750 kN

Basic static load rating (C0) – 1220 kN

Fatigue load limit (Pu) – 120

Reference speed – ?C r/min

Limiting speed – 800 r/min

Calculation factor (k1) – 0,115
