SKF C4020-2CS5V/GEM9 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C4020-2CS5V/GEM9 Transparent And Fair Price On Time Delivery

SKF C4020-2CS5V/GEM9 Bearing Description

We supply various of SKF C4020-2CS5V/GEM9 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C4020-2CS5V/GEM9 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C4020-2CS5V/GEM9 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C4020-2CS5V/GEM9 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C4020-2CS5V/GEM9 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C4020-2CS5V/GEM9 bearings will be arranged timely for we have a large stock of SKF C4020-2CS5V/GEM9 bearings in HongKong.

SKF C4020-2CS5V/GEM9 Bearing Specification

Bearing number : C4020-2CS5V/GEM9

Size (mm) : 100x150x50

Brand : The brand you need

Bore Diameter (mm) : 100

Outer Diameter (mm) : 150

Width (mm) : 50

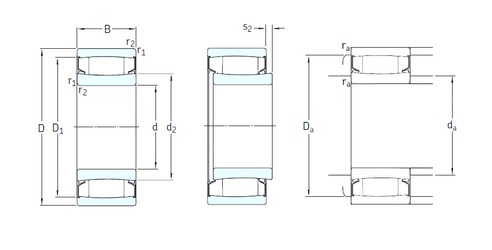

Bearing dimensions and specification in ALIER catalogue:

d – 100 mm

D – 150 mm

B – 50 mm

C – 50 mm

d2 – 114 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

D1 – 136 mm

da min. – 107 mm

da max – 113 mm

Da max. – 143 mm

ra max. – 1,5 mm

Calculation factor (k2) – 0,083

S2 – 6,2 mm

Weight – 2,9 Kg

Basic dynamic load rating (C) – 310 kN

Basic static load rating (C0) – 450 kN

Fatigue load limit (Pu) – 50

Limiting speed – 95 r/min

Calculation factor (k1) – 0,145

Tags :  ALIER , 100x150x50
