SKF C39/850KM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C39/850KM Transparent And Fair Price On Time Delivery

SKF C39/850KM Bearing Description

We supply various of SKF C39/850KM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C39/850KM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C39/850KM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C39/850KM bearings inquire deeply into the running of the machine and friction phenomenon .SKF C39/850KM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C39/850KM bearings will be arranged timely for we have a large stock of SKF C39/850KM bearings in HongKong.

SKF C39/850KM Bearing Specification

Bearing number : C39/850KM

Size (mm) : 850x1120x200

Brand : The brand you need

Bore Diameter (mm) : 850

Outer Diameter (mm) : 1120

Width (mm) : 200

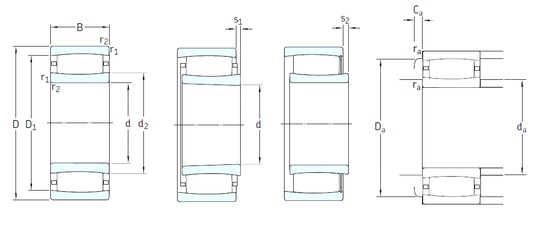

Bearing dimensions and specification in ALIER catalogue:

d – 850 mm

D – 1120 mm

B – 200 mm

C – 200 mm

d2 – 940 mm

r1 min. – 6 mm

r2 min. – 6 mm

D1 – 1053 mm

Ca – 2,9 mm

da min. – 873 mm

da max – 963 mm

Da min – 1025 mm

Da max. – 1097 mm

ra max. – 5 mm

Calculation factor (k2) – 0,098

S1 – 35,9 mm

Weight – 540 Kg

Basic dynamic load rating (C) – 7350 kN

Basic static load rating (C0) – 16300 kN

Fatigue load limit (Pu) – 960

Reference speed – 360 r/min

Limiting speed – 480 r/min

Calculation factor (k1) – 0,135

Tags :  ALIER , 850x1120x200
