SKF C3176MB Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C3176MB Transparent And Fair Price On Time Delivery

SKF C3176MB Bearing Description

We supply various of SKF C3176MB bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C3176MB bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C3176MB bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C3176MB bearings inquire deeply into the running of the machine and friction phenomenon .SKF C3176MB bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C3176MB bearings will be arranged timely for we have a large stock of SKF C3176MB bearings in HongKong.

SKF C3176MB Bearing Specification

Bearing number : C3176MB

Size (mm) : 380x620x194

Brand : The brand you need

Bore Diameter (mm) : 380

Outer Diameter (mm) : 620

Width (mm) : 194

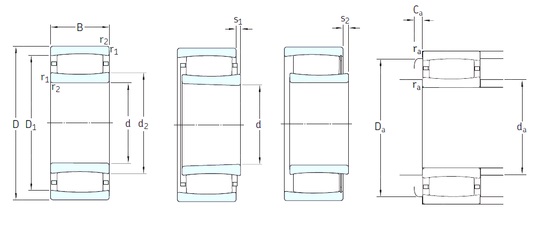

Bearing dimensions and specification in ALIER catalogue:

d – 380 mm

D – 620 mm

B – 194 mm

C – 194 mm

d2 – 446 mm

r1 min. – 5 mm

r2 min. – 5 mm

D1 – 551 mm

Ca – 7,3 mm

da min. – 400 mm

da max – 445 mm

Da min – 526 mm

Da max. – 600 mm

ra max. – 4 mm

Calculation factor (k2) – 0,106

S1 – 25,4 mm

Weight – 243 Kg

Basic dynamic load rating (C) – 4400 kN

Basic static load rating (C0) – 7200 kN

Fatigue load limit (Pu) – 520

Reference speed – 750 r/min

Limiting speed – 1000 r/min

Calculation factor (k1) – 0
