SKF C3168KM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C3168KM Transparent And Fair Price On Time Delivery

SKF C3168KM Bearing Description

We supply various of SKF C3168KM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C3168KM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C3168KM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C3168KM bearings inquire deeply into the running of the machine and friction phenomenon .SKF C3168KM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C3168KM bearings will be arranged timely for we have a large stock of SKF C3168KM bearings in HongKong.

SKF C3168KM Bearing Specification

Bearing number : C3168KM

Size (mm) : 340x580x190

Brand : The brand you need

Bore Diameter (mm) : 340

Outer Diameter (mm) : 580

Width (mm) : 190

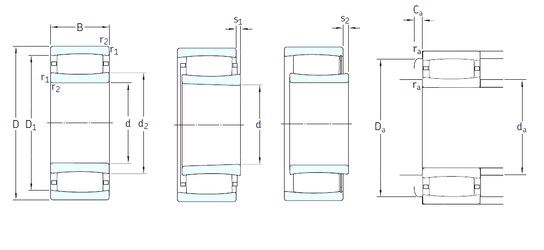

Bearing dimensions and specification in ALIER catalogue:

d – 340 mm

D – 580 mm

B – 190 mm

C – 190 mm

d2 – 402 mm

r1 min. – 5 mm

r2 min. – 5 mm

D1 – 517 mm

Ca – 4,2 mm

da min. – 360 mm

da max – 446 mm

Da min – 489 mm

Da max. – 560 mm

ra max. – 4 mm

Calculation factor (k2) – 0,093

S1 – 25,9 mm

Weight – 205 Kg

Basic dynamic load rating (C) – 4900 kN

Basic static load rating (C0) – 7500 kN

Fatigue load limit (Pu) – 560

Reference speed – 850 r/min

Limiting speed – 1100 r/min

Calculation factor (k1) – 0,118
