SKF C31/750MB Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C31/750MB Transparent And Fair Price On Time Delivery

SKF C31/750MB Bearing Description

We supply various of SKF C31/750MB bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C31/750MB bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C31/750MB bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C31/750MB bearings inquire deeply into the running of the machine and friction phenomenon .SKF C31/750MB bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C31/750MB bearings will be arranged timely for we have a large stock of SKF C31/750MB bearings in HongKong.

SKF C31/750MB Bearing Specification

Bearing number : C31/750MB

Size (mm) : 750x1220x365

Brand : The brand you need

Bore Diameter (mm) : 750

Outer Diameter (mm) : 1220

Width (mm) : 365

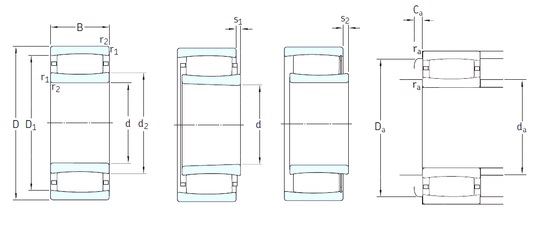

Bearing dimensions and specification in ALIER catalogue:

d – 750 mm

D – 1220 mm

B – 365 mm

C – 365 mm

d2 – 884 mm

r1 min. – 9,5 mm

r2 min. – 9,5 mm

D1 – 1077 mm

Ca – 9,3 mm

da min. – 790 mm

da max – 883 mm

Da min – 1025 mm

Da max. – 1180 mm

ra max. – 8 mm

Calculation factor (k2) – 0,094

S1 – 33 mm

Weight – 1810 Kg

Basic dynamic load rating (C) – 16000 kN

Basic static load rating (C0) – 30500 kN

Fatigue load limit (Pu) – 1800

Reference speed – 320 r/min

Limiting speed – 450 r/min

Calculation factor (k1) – 0

Tags :  ALIER , 750x1220x365
