SKF C3060KM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C3060KM Transparent And Fair Price On Time Delivery

SKF C3060KM Bearing Description

We supply various of SKF C3060KM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C3060KM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C3060KM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C3060KM bearings inquire deeply into the running of the machine and friction phenomenon .SKF C3060KM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C3060KM bearings will be arranged timely for we have a large stock of SKF C3060KM bearings in HongKong.

SKF C3060KM Bearing Specification

Bearing number : C3060KM

Size (mm) : 300x460x118

Brand : The brand you need

Bore Diameter (mm) : 300

Outer Diameter (mm) : 460

Width (mm) : 118

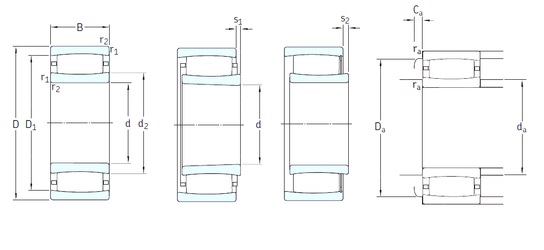

Bearing dimensions and specification in ALIER catalogue:

d – 300 mm

D – 460 mm

B – 118 mm

C – 118 mm

d2 – 351 mm

r1 min. – 4 mm

r2 min. – 4 mm

D1 – 417 mm

Ca – 1,7 mm

da min. – 315 mm

da max – 376 mm

Da min – 402 mm

Da max. – 445 mm

ra max. – 3 mm

Calculation factor (k2) – 0,095

S1 – 20 mm

Weight – 72 Kg

Basic dynamic load rating (C) – 2160 kN

Basic static load rating (C0) – 3750 kN

Fatigue load limit (Pu) – 290

Reference speed – 1100 r/min

Limiting speed – 1500 r/min

Calculation factor (k1) – 0,123
