SKF C 4134 K30V + AH 24134 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 4134 K30V + AH 24134 Transparent And Fair Price On Time Delivery

SKF C 4134 K30V + AH 24134 Bearing Description

We supply various of SKF C 4134 K30V + AH 24134 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 4134 K30V + AH 24134 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 4134 K30V + AH 24134 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 4134 K30V + AH 24134 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 4134 K30V + AH 24134 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 4134 K30V + AH 24134 bearings will be arranged timely for we have a large stock of SKF C 4134 K30V + AH 24134 bearings in HongKong.

SKF C 4134 K30V + AH 24134 Bearing Specification

Bearing number : C 4134 K30V + AH 24134

Size (mm) : 160x280x125

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 280

Width (mm) : 125

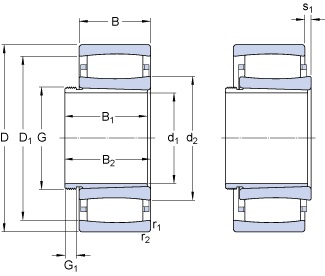

Bearing dimensions and specification in ALIER catalogue:

d₁ – 160 mm

D – 280 mm

B₁ – 125 mm

d₂ – – 200 mm

D₁ – – 251 mm

B – 109 mm

G – M 180×3

G₁ – 180 mm

s₁ – 21 mm

s₂ – 11.1 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 182 mm

d_a – max. – 209 mm

D_a – max. – 268 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 1530 kN

Basic static load rating – C₀ – 2280 kN

Fatigue load limit – P_u – 208 kN

Limiting speed – 280 r/min

Factor – k₁ – 0.108

Factor – k₂ – 0.1

Mass bearing and sleeve – 30 kg
