SKF C 4038 K30V + AH 24038 Bearing Description

We supply various of SKF C 4038 K30V + AH 24038 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 4038 K30V + AH 24038 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 4038 K30V + AH 24038 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 4038 K30V + AH 24038 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 4038 K30V + AH 24038 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 4038 K30V + AH 24038 bearings will be arranged timely for we have a large stock of SKF C 4038 K30V + AH 24038 bearings in HongKong.

SKF C 4038 K30V + AH 24038 Bearing Specification

Bearing number : C 4038 K30V + AH 24038

Size (mm) : 180x290x118

Brand : The brand you need

Bore Diameter (mm) : 180

Outer Diameter (mm) : 290

Width (mm) : 118

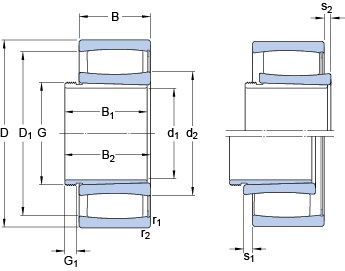

Bearing dimensions and specification in ALIER catalogue:

d₁ – 180 mm

D – 290 mm

B₁ – 118 mm

d₂ – – 220 mm

D₁ – – 263 mm

B – 100 mm

G – M 200×3

G₁ – 200 mm

s₁ – 20 mm

s₂ – 10.1 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 201 mm

d_a – max. – 245 mm

D_a – max. – 279 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 1370 kN

Basic static load rating – C₀ – 2320 kN

Fatigue load limit – P_u – 208 kN

Limiting speed – 380 r/min

Factor – k₁ – 0.108

Factor – k₂ – 0.103

Mass bearing and sleeve – 28 kg
