SKF C 4032 V Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 4032 V Transparent And Fair Price On Time Delivery

SKF C 4032 V Bearing Description

We supply various of SKF C 4032 V bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 4032 V bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 4032 V bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 4032 V bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 4032 V bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 4032 V bearings will be arranged timely for we have a large stock of SKF C 4032 V bearings in HongKong.

SKF C 4032 V Bearing Specification

Bearing number : C 4032 V

Size (mm) : 160x240x80

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 240

Width (mm) : 80

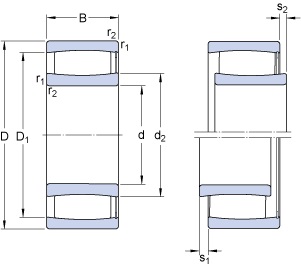

Bearing dimensions and specification in ALIER catalogue:

d – 160 mm

D – 240 mm

B – 80 mm

d₂ – – 181 mm

D₁ – – 217 mm

s₁ – 18.1 mm

s₂ – 8.2 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 171 mm

d_a – max. – 199 mm

D_a – max. – 229 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 915 kN

Basic static load rating – C₀ – 1460 kN

Fatigue load limit – P_u – 140 kN

Limiting speed – 600 r/min

Factor – k₁ – 0.109

Factor – k₂ – 0.103

Mass bearing – 13 kg
