SKF C 4032 K30 + AH 24032 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 4032 K30 + AH 24032 Transparent And Fair Price On Time Delivery

SKF C 4032 K30 + AH 24032 Bearing Description

We supply various of SKF C 4032 K30 + AH 24032 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 4032 K30 + AH 24032 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 4032 K30 + AH 24032 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 4032 K30 + AH 24032 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 4032 K30 + AH 24032 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 4032 K30 + AH 24032 bearings will be arranged timely for we have a large stock of SKF C 4032 K30 + AH 24032 bearings in HongKong.

SKF C 4032 K30 + AH 24032 Bearing Specification

Bearing number : C 4032 K30 + AH 24032

Size (mm) : 150x240x95

Brand : The brand you need

Bore Diameter (mm) : 150

Outer Diameter (mm) : 240

Width (mm) : 95

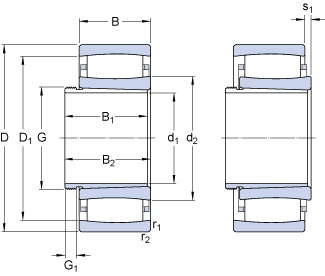

Bearing dimensions and specification in ALIER catalogue:

d₁ – 150 mm

D – 240 mm

B₁ – 95 mm

d₂ – – 181 mm

D₁ – – 217 mm

B – 80 mm

G – M 170×3

G₁ – 170 mm

s₁ – 18.1 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 166 mm

d_a – max. – 190 mm

D_a – min. – 209 mm

D_a – max. – 229 mm

C_a – min. – 2.2 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 765 kN

Basic static load rating – C₀ – 1160 kN

Fatigue load limit – P_u – 110 kN

Reference speed – 1700 r/min

Limiting speed – 2400 r/min

Factor – k₁ – 0.109

Factor – k₂ – 0.103

Mass bearing and sleeve – 14.7 kg
