SKF C 40/710 K30M + AOH 240/710 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 40/710 K30M + AOH 240/710 G Transparent And Fair Price On Time Delivery

SKF C 40/710 K30M + AOH 240/710 G Bearing Description

We supply various of SKF C 40/710 K30M + AOH 240/710 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 40/710 K30M + AOH 240/710 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 40/710 K30M + AOH 240/710 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 40/710 K30M + AOH 240/710 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 40/710 K30M + AOH 240/710 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 40/710 K30M + AOH 240/710 G bearings will be arranged timely for we have a large stock of SKF C 40/710 K30M + AOH 240/710 G bearings in HongKong.

SKF C 40/710 K30M + AOH 240/710 G Bearing Specification

Bearing number : C 40/710 K30M + AOH 240/710 G

Size (mm) : 670x1030x360

Brand : The brand you need

Bore Diameter (mm) : 670

Outer Diameter (mm) : 1030

Width (mm) : 360

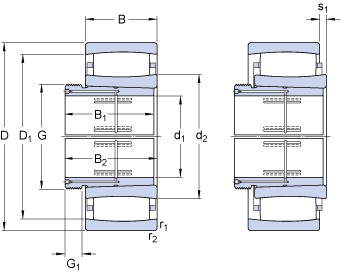

Bearing dimensions and specification in ALIER catalogue:

d₁ – 670 mm

D – 1030 mm

B₁ – 360 mm

d₂ – – 803 mm

D₁ – – 935 mm

B – 315 mm

G – Tr 750×7

G₁ – 750 mm

s₁ – 51.2 mm

r_1,2 – min. – 7.5 mm

d_a – min. – 725 mm

d_a – max. – 843 mm

D_a – min. – 911 mm

D_a – max. – 1002 mm

C_a – min. – 4.4 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 10600 kN

Basic static load rating – C₀ – 21600 kN

Fatigue load limit – P_u – 1320 kN

Reference speed – 320 r/min

Limiting speed – 430 r/min

Factor – k₁ – 0.113

Factor – k₂ – 0.101

Mass bearing and sleeve – 1010 kg

Tags :  ALIER , 670x1030x360
