SKF C 3236 K + H 2336 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3236 K + H 2336 Transparent And Fair Price On Time Delivery

SKF C 3236 K + H 2336 Bearing Description

We supply various of SKF C 3236 K + H 2336 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3236 K + H 2336 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3236 K + H 2336 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3236 K + H 2336 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3236 K + H 2336 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3236 K + H 2336 bearings will be arranged timely for we have a large stock of SKF C 3236 K + H 2336 bearings in HongKong.

SKF C 3236 K + H 2336 Bearing Specification

Bearing number : C 3236 K + H 2336

Size (mm) : 160x320x161

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 320

Width (mm) : 161

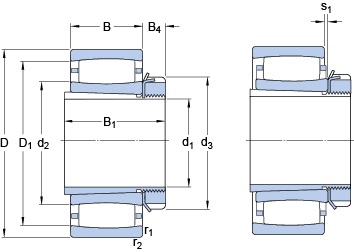

Bearing dimensions and specification in ALIER catalogue:

d₁ – 160 mm

D – 320 mm

B₁ – 161 mm

d₂ – – 228 mm

d₃ – 230 mm

D₁ – – 289 mm

B – 112 mm

B₄ – 30 mm

s₁ – 27.3 mm

r_1,2 – min. – 4 mm

d_a – max. – 249 mm

d_b – min. – 195 mm

D_a – min. – 271 mm

D_a – max. – 303 mm

B_a – min. – 22 mm

C_a – min. – 3.2 mm

r_a – max. – 3 mm

Basic dynamic load rating – C – 1530 kN

Basic static load rating – C₀ – 2200 kN

Fatigue load limit – P_u – 193 kN

Reference speed – 1500 r/min

Limiting speed – 2000 r/min

Factor – k₁ – 0.107

Factor – k₂ – 0.104

Mass bearing and adapter sleeve – 47 kg
