SKF C 3168 KM + OH 3168 H Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3168 KM + OH 3168 H Transparent And Fair Price On Time Delivery

SKF C 3168 KM + OH 3168 H Bearing Description

We supply various of SKF C 3168 KM + OH 3168 H bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3168 KM + OH 3168 H bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3168 KM + OH 3168 H bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3168 KM + OH 3168 H bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3168 KM + OH 3168 H bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3168 KM + OH 3168 H bearings will be arranged timely for we have a large stock of SKF C 3168 KM + OH 3168 H bearings in HongKong.

SKF C 3168 KM + OH 3168 H Bearing Specification

Bearing number : C 3168 KM + OH 3168 H

Size (mm) : 320x580x254

Brand : The brand you need

Bore Diameter (mm) : 320

Outer Diameter (mm) : 580

Width (mm) : 254

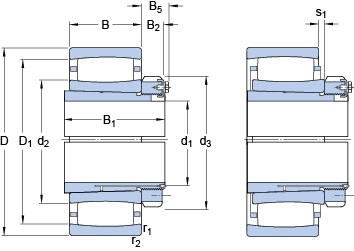

Bearing dimensions and specification in ALIER catalogue:

d₁ – 320 mm

D – 580 mm

B₁ – 254 mm

d₂ – – 402 mm

d₃ – 440 mm

D₁ – – 517 mm

B – 190 mm

B₂ – 55 mm

B₅ – 72 mm

s₁ – 25.9 mm

r_1,2 – min. – 5 mm

d_a – max. – 446 mm

d_b – min. – 360 mm

D_a – min. – 489 mm

D_a – max. – 560 mm

B_a – min. – 14 mm

C_a – min. – 4.2 mm

r_a – max. – 4 mm

Basic dynamic load rating – C – 4900 kN

Basic static load rating – C₀ – 7500 kN

Fatigue load limit – P_u – 560 kN

Reference speed – 850 r/min

Limiting speed – 1100 r/min

Factor – k₁ – 0.118

Factor – k₂ – 0.093

Mass bearing and adapter sleeve – 235 kg

Tags :  ALIER , 320x580x254
