SKF C 3152 K + OH 3152 HTL Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3152 K + OH 3152 HTL Transparent And Fair Price On Time Delivery

SKF C 3152 K + OH 3152 HTL Bearing Description

We supply various of SKF C 3152 K + OH 3152 HTL bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3152 K + OH 3152 HTL bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3152 K + OH 3152 HTL bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3152 K + OH 3152 HTL bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3152 K + OH 3152 HTL bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3152 K + OH 3152 HTL bearings will be arranged timely for we have a large stock of SKF C 3152 K + OH 3152 HTL bearings in HongKong.

SKF C 3152 K + OH 3152 HTL Bearing Specification

Bearing number : C 3152 K + OH 3152 HTL

Size (mm) : 240x440x190

Brand : The brand you need

Bore Diameter (mm) : 240

Outer Diameter (mm) : 440

Width (mm) : 190

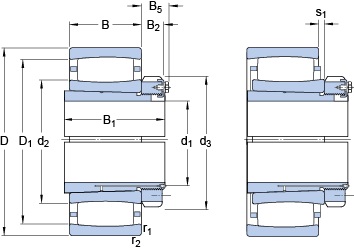

Bearing dimensions and specification in ALIER catalogue:

d₁ – 240 mm

D – 440 mm

B₁ – 190 mm

d₂ – – 314 mm

d₃ – 310 mm

D₁ – – 394 mm

B – 144 mm

B₂ – 34 mm

B₅ – 46 mm

s₁ – 26.4 mm

r_1,2 – min. – 4 mm

d_a – max. – 341 mm

d_b – min. – 276 mm

D_a – min. – 371 mm

D_a – max. – 423 mm

B_a – min. – 11 mm

C_a – min. – 4.1 mm

r_a – max. – 3 mm

Basic dynamic load rating – C – 2650 kN

Basic static load rating – C₀ – 4050 kN

Fatigue load limit – P_u – 325 kN

Reference speed – 1100 r/min

Limiting speed – 1500 r/min

Factor – k₁ – 0.115

Factor – k₂ – 0.096

Mass bearing and adapter sleeve – 105 kg
