SKF C 31/500 KM + OH 31/500 H Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 31/500 KM + OH 31/500 H Transparent And Fair Price On Time Delivery

SKF C 31/500 KM + OH 31/500 H Bearing Description

We supply various of SKF C 31/500 KM + OH 31/500 H bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 31/500 KM + OH 31/500 H bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 31/500 KM + OH 31/500 H bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 31/500 KM + OH 31/500 H bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 31/500 KM + OH 31/500 H bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 31/500 KM + OH 31/500 H bearings will be arranged timely for we have a large stock of SKF C 31/500 KM + OH 31/500 H bearings in HongKong.

SKF C 31/500 KM + OH 31/500 H Bearing Specification

Bearing number : C 31/500 KM + OH 31/500 H

Size (mm) : 470x830x356

Brand : The brand you need

Bore Diameter (mm) : 470

Outer Diameter (mm) : 830

Width (mm) : 356

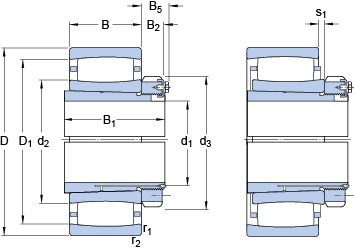

Bearing dimensions and specification in ALIER catalogue:

d₁ – 470 mm

D – 830 mm

B₁ – 356 mm

d₂ – – 605 mm

d₃ – 630 mm

D₁ – – 738 mm

B – 264 mm

B₂ – 80 mm

B₅ – 100 mm

s₁ – 75.3 mm

r_1,2 – min. – 7.5 mm

d_a – max. – 654 mm

d_b – min. – 527 mm

D_a – min. – 706 mm

D_a – max. – 798 mm

B_a – min. – 18 mm

C_a – min. – -11.7 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 7500 kN

Basic static load rating – C₀ – 12700 kN

Fatigue load limit – P_u – 850 kN

Reference speed – 530 r/min

Limiting speed – 750 r/min

Factor – k₁ – 0.099

Factor – k₂ – 0.116

Mass bearing and adapter sleeve – 690 kg
